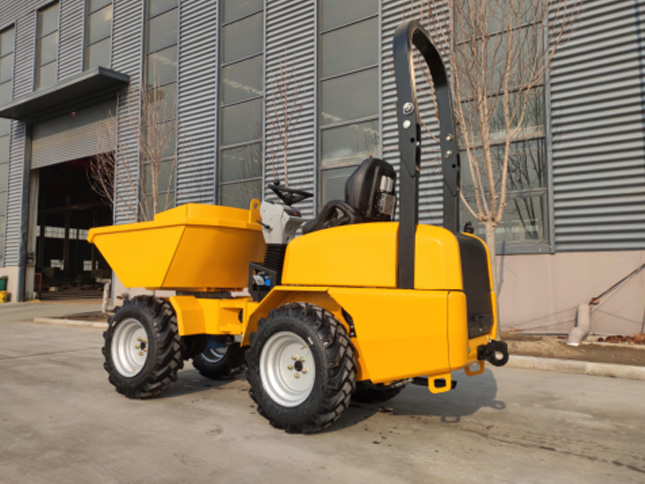

H100 Wheel Dumper-Heracles

Technical specifications
Advantages and characteristics

Thanks to compact dimensions and excellent control, Heracles Wheel Dumpers cannot only work in many grounds, but also tackle different problems. The hydraulic drive system makes operation more comfortable and easier. Operators can learn how to use the machines much more quickly. The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas. Reliability, durability and low maintenance makes wheel dumpers a good investment.

	H928	H550	H580	H650	H680
	mm	mm	mm	mm	mm
Cab height	2695	2695	2695	2745	2745
Ground clearance	400	400	400	400	400
Wheelbase	2475	2475	2475	2475	2475
Total length	5790	6150	6150	6150	6150
Unloading distance when standard unloading height	860	750	750	750	750
Excavation depth	80	20	20	20	20
Standard maximum unloading height	2780	3480	3480	3480	3480
Standard maximum height of bucket load	3300	3920	3920	3920	3920
Standard maximum height of the hinge pin	3430	4050	4050	4050	4050
After leaving the ground	30	30	30	30	30
Total length under fork	6300	6540	6540	6540	6540
Loading distance	680	920	920	920	920
Standard maximum extension distance	1300	1670	1670	1670	1670
The fork depth is lower than the ground size	90	90	90	90	90
Ground height at the maximum extension of the fork	1570	1740	1740	1740	1740
Fork standard maximum height	3300	3875	3875	3875	3875
Unloading distance when the fork reaches the maximum height marked	420	100	100	100	100
Turning radius outside the bucket	4650	4870	4870	4870	4870
Turning radius inside the bucket	2430	2580	2580	2580	2580
Bucket width	2050	2000	2000	2000	2000
Front wheel width	1600	1600	1600	1600	1600
Maximum width of the machine	2040	1900	1900	1900	1900
Steering angle	40	40	40	40	40
Unloading angle at maximum lift height	40	35	35	35	35
