Thanks to compact dimensions and excellent control, Heracles Wheel Loaders cannot only work in many grounds, but also tackle different problems. The hydraulic drive system makes operation more comfortable and easier. Operators can learn how to use the machines much more quickly. The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas. Reliability, durability and low maintenance makes wheel loaders a good investment.
Thanks to compact dimensions and excellent control, Heracles Wheel Loaders cannot only work in many grounds, but also tackle different problems. The hydraulic drive system makes operation more comfortable and easier. Operators can learn how to use the machines much more quickly. The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas. Reliability, durability and low maintenance makes wheel loaders a good investment.
Lndividual wheel motors give excellent ground clearance and eliminate vulnerable propshafts

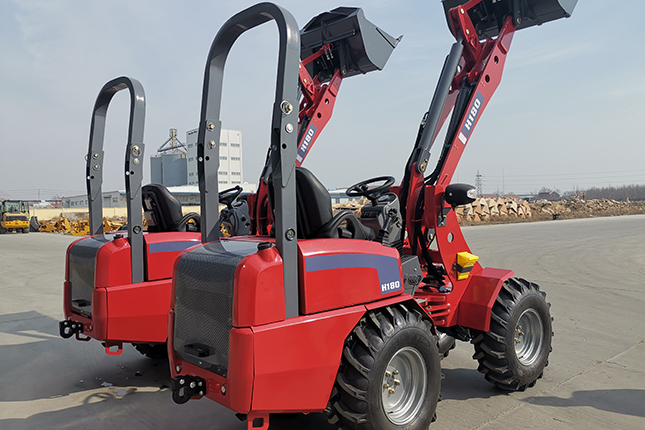

Reliability,durability and low maintenance make the H180 an excellent investment
| standard wheels | narrow wheels | wide wheels | |
| overall length with standard shovel mm | 3959 | 3959 | 3959 |
| wheels base mm | 1540 | 1540 | 1540 |
| minimum ground dearance mm | 200 | 200 | 200 |
| height over rops frame mm | 2499 | 2499 | 2499 |
| maximum shovel width mm | 1180 | 1111 | 1280 |
| wheel track mm | 872 | 772 | 877 |
| front alex weight kg | 846 | 831 | 870 |
| rear alex weight kg | 1269 | 1247 | 1285 |
| operating weight(including standard shovel)no operator kg | 2115 | 2078 | 2155 |
| inside turn radius mm | 1121 | 1171 | 1061 |
| maximum turn radius over shovel mm | 2691 | 2649 | 2735 |
| maximum turn radius over tyres mm | 2257 | 2207 | 2318 |
| articulation angel degress | 49 | 53 | 49 |
| maximum width across tyres mm | 1136 | 1036 | 1257 |
| standard arm | long arm | |
| loader type | double arm | double arm |
| geometry | parallel | parallel |
| shovel mounting | mechanical quickhitch | mechanical quickhitch |
| shovel-type standard | general purpose | general purpose |
| capacity heaped-standard m cube | 0.3 | 0.3 |
| shovel backout force kn | 20.5 | 20.5 |
| turn radius over shovel mm | 2690 | 2837 |
| tipping load straight kg | 1261 | 1035 |
| full turn tipping load kg | 838 | 678 |
| hinge pin height mm | 2900 | 3151 |
| reach at max height at 45 dump mm | 385 | 381 |
| max reach at 45 dump mm | 1132 | 1346 |
| roll back at full height degrees | 54 | 58 |
| dump angel at full height degrees | 45 | 45 |
| roll back at carry degrees | 51 | 53 |
| dump at minimum height degrees | 80 | 77 |
| total length mm | 4030 | 4314 |
| length to loader pin mm | 3259 | 3550 |
| digging depth mm | 94 | 150 |
| dump height mm | 2167 | 2417 |
| load over height mm | 2634 | 2878 |
| ENGINE | |
| make | kohler yanmar |
| model | KDW1603CHD 3TVN88-DLDW |
| capacity litres | 1649 |
| bore mm | 88 |
| stroke mm | 90.4 |
| aspiration | natural |
| cylindes | 3 |
| engine output@2800rpm kw | 28(37.5) |
| gross torque rating @1600rpm nm | 104 |
| TRANSMISSION | |
| system pump type | variable displacement pision |
| drive type | incependent wheel motors |
| chassiss angel oscillation | 7.5each way |
| travel speed dagrees | 20 |
| type kph | hydiostatic |
| LOADER HYDRAULICS | |
| pump type | gear |
| pump maxiumum flow l/min | 42 |
| pump maximum pressure bar | 200 |
| hydraulic cycle times at engine revs | seconds |
| arms raice | 3 |
| bucket dump | 0.5 |
| arms lower | 3 |
| total cyde | 7 |
| SERVICE FILL CAPACRIES | |
| hydraulic and transmission system litres | 40 |
| fuel tark litres | 45 |
| engine oil sump litres | 7.1 |
| ELECTRICAL OUTPUT | |
| system voltage volts | 12 |
| alternator output ah | 65 |
| battery capacity ah | 60 |
| SEANDARD EQUIPMENT | |
| rops frame fops | agtyres 10/75-153 |
| seandard loader arms | font chassis counter weight |
| aheel spacers | lockable down jcystick |
| OPTIONAL EQUIPMENT | |
| workligths | long loader arms |
| shovels | pallet forks |
| muck fock and grab | hitches |
| auxiliary hydraulics | wide agri tyres31x15.5x15 |
| traler/truck tread tyres | wide fenders |
| caropy | limited slip differential |
| road lights |
